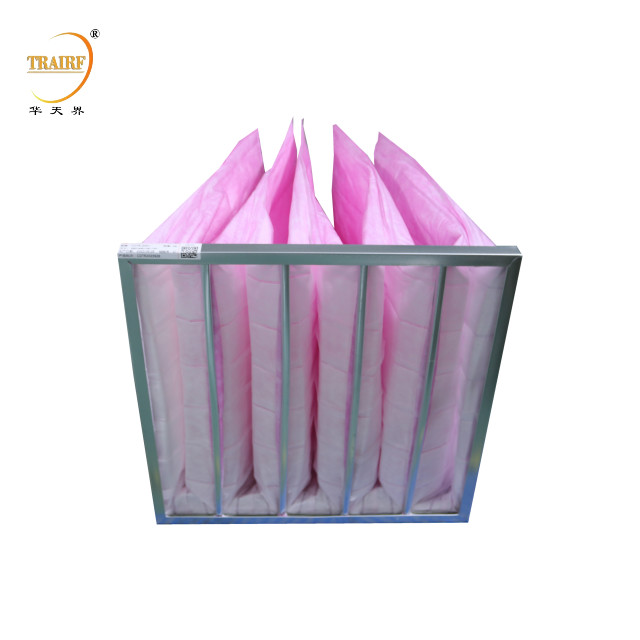

Industrial Air Filter Ahu Bag Filter Pocket Air Filters for HVAC System
Product Description
Fiberglass and Synthetic Fiber filter media are available for TRAIRF® Medium Efficiency pocket air filter. Synthetic fiber media consist of one layer of spun bound on each side for strength and stability, one coarse fiber melt-blown layer for filtration of larger particles and one fine melt-blown layer for filtration of smaller particles.This media is extremely durable and non-shedding. Using a variety of materials, the range of filtration efficiency can be spanned from 45-50% to 90-95% and > 95%.
Feature
Size: 490*490*381mm
Pocket: 5 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: pink
Maximum service temperature: 80ºC
Maximum humidity:80%
*Long service life
*Large dust holding capacity
*Can be reused many times
*Small resistance
*High air volume
*Low wind speed
Excellent filtration performance; Good air-tightness;
Silicone-free design The high strength of the filter bag, not easy to break or fall off.
Product Parameters
| Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency | Model of filter media | Pockets |
| TR-ZXD-P1 | 495*295*500mm 20"×12" ×20" | 1000m³/h | 50-130Pa | 45% F5 65% F6 85% F7 95% F8 98% F9 colorimetric | F5 White F6 Green F7 Pink F8 Yellow F9 Yellow | 5 |
| TR-ZXD-P2 | 495*295*500mm 20"×12" ×20" | 1800m³/h | 5 |
| TR-ZXD-P3 | 595*295*500mm 24"×12" ×20" | 1300m³/h | 6 |
| TR-ZXD-P4 | 595*595*500mm 24"×24" ×20 | 2200m³/h | 6 |
| TR-ZXD-P5 | 495*295*500mm 20"×12" ×24" | 2600m³/h | 8 |
| TR-ZXD-P6 | 495*495*500mm 20"×20" ×24" | 1200m³/h | 5 |
| TR-ZXD-P7 | 495*295*500mm 20"×12" ×24" | 2200m³/h | 5 |
| TR-ZXD-P8 | 595*295*500mm 24"×12" ×24" | 1600m³/h | 6 |
| TR-ZXD-P9 | 595*495*500mm 24"×20" ×24" | 2700m³/h | 6 |
| TR-ZXD-P10 | 595*595*500mm 24"×24" ×24" | 3200m³/h | 8 |
Manufacturing technique
Why choose us?
1. The dimension can be customized. 2. We have our own factory and brand. 3. With independent R&D and design capabilities. 4. The products have passed ISO9001 and SGS certification. 5. We have specialized in the export of air filters for over 10 years. 6. We provide OEM and ODM service ,sample production and service according to your demand.
Application
1. Clean rooms (suitable for use in multi layer filter filtration system) 2. Food processing industry. 3. Pharmaceutical Processing. 4. Aerospace Engineering. 5. Genetic & Biological research. 6. Bio hazard Atmosphere. 7. Laminar Flow Workstations. 8. Bio Safe Hoods (Biological Safety Cabinets). 9. Hospital Operating Theaters & Intensive care units. 10. Spray Booth and Paint Room. 11. Electronic Industry.
FAQ
Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.
Q: Why should we choose your as a trust quality supplier especially for the first deal?
A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out.
Secondly: Competitive Price provided as raw materials are provided by our own factory.
Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality inspection equipment.
Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17) American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.
Q: What's your MOQ ?
A: Different standard of MOQ for different goods.
Q: What's your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by train (Our Company Nearby QINGBAIJIANG International Railway Station which line can be arrival Middle Europe directly and only need to take half month )
Q: What's your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
Q:What's your payment terms?
A:Total amount <=2000USD, 100% T/T in advance. Total amount>=2000USD, 30% T/T in advance and 70% balance before shipment. If you have another question, please feel free to contact us.
